Belt Conveyor Systems
Powered belt systems for conveying items with irregular bottoms, sacks, small cartons. Horizontal Belt is ideally used to convey items with irregular bottom surfaces, small items that could fall between rollers or bags that may sag between rollers. Belt conveyors drive the belt, where roller conveyors drive the load, making belt conveyors easier on more fragile conveyed products.
Horizontal Slider Bed
Slider Bed Conveyor is suitable for light to medium loads, and is one of the most popular conveyor types in use today. These conveyors have a sheet metal frame with pulleys at either end. The belt slides across the solid metal frame, giving it the name slider bed. It’s an inexpensive, quiet, easily-installed conveyor. Maximum load per linear ft: 75 lbs.
IDEAL FOR: Long assembly line operations, inspections, testing, sorting, packaging, and packing
TA / TL Horizontal Slider Bed
Slider Bed Trough
Due to integrated guard rails that help contain the load, Model TR troughed bed conveyor is ideal for overhead conveying applications. It’s also well-suited for any application involving loose parts, where containing the load, or where product stability may be in question. Maximum load per linear ft: 75 lbs.
IDEAL FOR: Conveying boxes, cartons, cases, bags, packaging, and loose parts in overhead conveying applications
TR Slider Bed Trough
Horizontal Slider Bed
This belt conveyor includes pop-out rollers on each end making it easy to match up with and bolt to other sections of conveyor without having to resize or share belts. A channel frame, bolt-in pans, and reversible center drive are standard. Motor is limited to a speed of 65 feet per minute. Maximum load per linear ft: 100 lbs.
IDEAL FOR: Packaging and matching up with roller bed conveyors
SB Horizontal Slider Bed
Horizontal Roller Bed
Roller bed conveyors have a much higher load weight capacity than slider bed conveyors by reducing the friction caused by the belt against the bed surface. This conveyor also has a channeled frame equipped with a single transition roller on the end of the conveyor bed. Maximum load per linear ft: 225 lbs.
RB Horizontal Roller Bed
Power Belt Gapping Conveyor
The Gapper belt conveyor creates a set amount of space between conveyed products. It is an ideal conveyor for feeding saw tooth merges, combiners, sorters, or other equipment where gaps must be pulled between cartons.
Power Belt Gapping

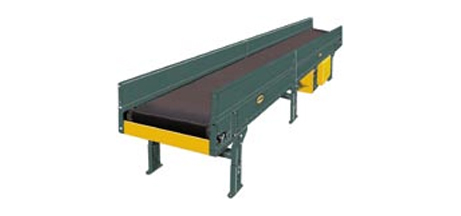

Trash Slider Bed
Trash conveyors handle empty cartons, boxes, trash and other lightweight loads that must be contained between its 6″ tall integral side guards. Excellent for operations where boxes are being opened, and contents removed. Trash conveyors can help keep a facility much cleaner and more organized than discarding boxes into dumpsters, carts or bins, and don’t require collection employees.
TH Trash Slider Bed
Belt Conveyor Curves
The Model TS1500-100 belted curve conveyor provides a positive flow of product by means of a belt, driven by tapered pulleys. Conveyor is a versatile in that it can transport a wide variety of products. Available in 45°, 60°, 90°, and 180° turns. Used for loads that are too small or too irregular to be conveyed on rollers.
TS-1500 Series Transnorm Belt Curve
